Cardiac Resynchronization Therapy Improved Heart Failure After Left Bundle Branch Block During Transcatheter Aortic Valve Implantation

Abstract: After transcatheter aortic valve implantation (TAVI) in a 75-year-old male, chronic wide left bundle branch block (LBBB) developed. He experienced repeated episodes of decompensated systolic heart failure with severe systolic left ventricular dysfunction. After cardiac resynchronization therapy, his heart function improved substantially and he had no further admissions for heart failure. Cardiac resynchronization therapy can be effective in systolic heart failure associated with LBBB developing after TAVI.

J INVASIVE CARDIOL 2012;24:132–133

Key words: heart failure, valvular heart disease, cardiac resynchronization therapy

__________________________________________

Electrical conduction abnormalities are common following transcatheter aortic valve implantation (TAVI). Among them, left bundle branch block (LBBB) develops in approximately 30% of cases^1-4 and requires a permanent pacemaker in up to one-third of patients.^1,5-7 Moreover, LBBB can worsen systolic left ventricular (LV) function, leading to systolic heart failure.^8,9 The potential benefits of cardiac resynchronization therapy (CRT) in this situation remain unclear. We describe successful CRT therapy in a patient with symptomatic systolic heart failure and LBBB after TAVI.

Case Report

A 75-year-old man presented with angina and dyspnea (New York Heart Association III). He had a history of acute anterior wall myocardial infarction and was treated with drug-eluting stents in the proximal left anterior descending, proximal left circumflex (LCX), and proximal right coronary artery (RCA) two years ago because the LCX and RCA also showed severe stenosis.

No restenosis was found by coronary angiography, but transthoracic echocardiography revealed severe aortic valve stenosis (mean gradient, 37 mm Hg; peak gradient, 58 mm Hg; and aortic valve surface area, 0.7 cm²) and decreased left ventricular ejection fraction (LVEF; 30%). He was referred to our center for aortic valve stenosis management.

Despite moderate values for the Logistic Euroscore (13.94%), conventional open-chest aortic valve replacement was considered unsafe by two cardiac surgeons because the patient had a history of acute mesenteric infarction in 2003 and comorbidity of Parkinson’s disease. TAVI was therefore performed with a 29 mm self-expanding CoreValve ReValving System (Medtronic) implanted via the left femoral artery. Immediately after TAVI, LBBB occurred (QRS duration increased from 118 to 180 msec, Figures 1A and 1B). The patient was discharged from our unit 7 days after the procedure.

However, 1 month after the index procedure, the patient was admitted for acute decompensated heart failure (HF). Transthoracic echocardiography revealed normal prosthesis function (mean gradient, 6 mm Hg; peak gradient, 12 mm Hg; and aortic valve surface area, 2.3 cm²), severe LV dysfunction (LVEF, 25%), and abnormal diastolic indices indicating high left-chamber filling pressures.

Over the next 9 months, he was admitted 3 times for acute pulmonary edema. Electrocardiogram (ECG) still showed LBBB and LVEF was unchanged despite optimal medical therapy. A CRT defibrillator (CRT-D) device (Concerto II; Medtronic) was implanted, according to international guidelines.^10,11 We placed an atrial lead in the right atrial appendage, a right ventricular lead in the right ventricular septum, and an LV lead (Attain OTW; Medtronic) in the posterolateral coronary sinus branch. The pacemaker was programmed in DDD mode with a short atrioventricular delay to maximize the percentage of biventricular stimulations. The atrioventricular and interventricular delays were programmed during transthoracic echocardiography to optimize diastolic and systolic LV function. QRS duration decreased to 145 msec under biventricular stimulation (Figure 1C). The N-Terminal Pro-B Type natriuretic peptide concentration, LV diastolic diameter (LVDd), and LVEF, which had not changed after TAVI, improved 3 months after CRT-D implantation (Figure 2). The New York Heart Association class improved from III to II and no admissions were required over the next 10 months.

Discussion

TAVI is effective for high-risk surgical patients with severe symptomatic aortic stenosis.^12-15 However, the mid- and long-term outcomes of TAVI remain unclear and need to be evaluated in prospective randomized studies.

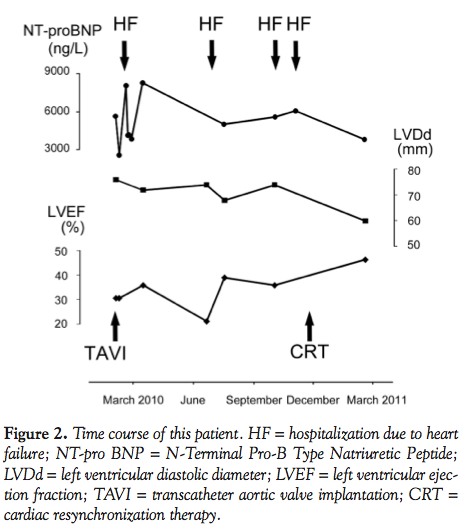

In this case, the patient didn’t require hospitalization after implantation of CRT, and CRT seemed to be effective to improve cardiac function. It is also possible that TAVI was effective for the improvement of cardiac function because LVDd and LVEF improved slightly prior to CRT placement. Therefore, it is reasonable to think that the combination therapy of CRT and TAVI was effective for the treatment of heart failure in this patient.

Electrical conduction disturbances are common after TAVI. Among them, LBBB has been reported in 3%-45% of cases.^1-4 Additionally, the main cause of death following TAVI is the occurrence of cardiovascular complications such as heart failure.^13,16 The prognostic significance of post-TAVI LBBB is unclear. However, after surgical aortic valve replacement, LBBB is independently associated with an increased risk of adverse cardiac events.^17,18 LBBB is also a strong independent predictor of mortality and morbidity in patients with systolic heart failure.^9,19,20 Thus, the high rate of LBBB after TAVI would be expected to contribute to a deterioration in systolic LV function, particularly in patients with preexisting LV dysfunction.^15,21 The pathophysiology of LBBB development after TAVI is obscure, but may involve deeper prosthesis implantation^2,4 responsible for intraventricular conduction disturbances.

The course of post-TAVI LBBB is not well known, but cases of spontaneous resolution have been described.^2,4 However, our patient had stable LBBB 10 months after TAVI, indicating that the disorder was chronic. CRT is a recognized treatment modality for symptomatic systolic heart failure and LBBB.^11,22-24 Thus, CRT may hold promise for improving long-term outcomes in TAVI patients. However, LBBB can resolve shortly after TAVI, and CRT should be considered only in patients with chronic LV dysfunction and LBBB. The best time for CRT and the potential contribution of CRT to post-TAVI management need to be evaluated.

Conclusion

CRT was performed successfully in a patient with repeated admissions for decompensated systolic heart failure after post-TAVI LBBB. The exact indications of CRT following TAVI need to be clarified.

References

1. Piazza N, Onuma Y, Jesserun E, et al. Early and persistent intraventricular conduction abnormalities and requirements for pacemaking after percutaneous replacement of the aortic valve. JACC Cardiovasc Interv. 2008;1(3):310-316.
2. Gutierrez M, Rodes-Cabau J, Bagur R, et al. Electrocardiographic changes and clinical outcomes after transapical aortic valve implantation. Am Heart J. 2009;158(2):302-308.
3. Calvi V, Puzzangara E, Pruiti GP, et al. Early conduction disorders following percutaneous aortic valve replacement. Pacing Clin Electrophysiol. 2009;32(Suppl 1):S126-S130.
4. Aktug O, Dohmen G, Brehmer K, et al. Incidence and predictors of left bundle branch block after transcatheter aortic valve implantation. Int J Cardiol. 2011 Mar 30 [Epub ahead of print].
5. Sinhal A, Altwegg L, Pasupati S, et al. Atrioventricular block after transcatheter balloon expandable aortic valve implantation. JACC Cardiovasc Interv. 2008;1(3):305-309.
6. Khawaja MZ, Rajani R, Cook A, et al. Permanent pacemaker insertion after CoreValve transcatheter aortic valve implantation: incidence and contributing factors (the UK CoreValve Collaborative). Circulation. 2011;123(9):951-960.
7. Jilaihawi H, Chin D, Vasa-Nicotera M, et al. Predictors for permanent pacemaker requirement after transcatheter aortic valve implantation with the CoreValve bioprosthesis. Am Heart J. 2009;157(5):860-866.
8. Xiao HB, Brecker SJ, Gibson DG. Effects of abnormal activation on the time course of the left ventricular pressure pulse in dilated cardiomyopathy. Br Heart J. 1992;68(4):403-407.
9. Zimetbaum PJ, Buxton AE, Batsford W, et al. Electrocardiographic predictors of arrhythmic death and total mortality in the multicenter unsustained tachycardia trial. Circulation. 2004;110(7):766-769.
10. Daubert JC, Leclercq C, Mabo P. Cardiac resynchronization therapy in combination with implantable cardioverter-defibrillator. Europace. 2009;11(Suppl 5):V87-V92.
11. Dickstein K, Vardas PE, Auricchio A, et al. 2010 Focused update of ESC guidelines on device therapy in heart failure: an update of the 2008 ESC guidelines for the diagnosis and treatment of acute and chronic heart failure and the 2007 ESC guidelines for cardiac and resynchronization therapy. Developed with the special contribution of the Heart Failure Association and the European Heart Rhythm Association. Europace. 2010;12(11):1526-1536.
12. Grube E, Schuler G, Buellesfeld L, et al. Percutaneous aortic valve replacement for severe aortic stenosis in high-risk patients using the second- and current third-generation self-expanding Core-Valve prosthesis: device success and 30-day clinical outcome. J Am Coll Cardiol. 2007;50(1):69-76.
13. Leon MB, Smith CR, Mack M, et al. Transcatheter aortic-valve implantation for aortic stenosis in patients who cannot undergo surgery. N Engl J Med. 2010;363(17):1597-1607.
14. Smith CR, Leon MB, Mack MJ, et al. Transcatheter versus surgical aortic-valve replacement in high-risk patients. N Engl J Med. 2011;364(23):2187-2198.
15. Tamburino C, Capodanno D, Ramondo A, et al. Incidence and predictors of early and late mortality after transcatheter aortic valve implantation in 663 patients with severe aortic stenosis. Circulation. 2011;123(3):299-308.
16. Webb JG, Altwegg L, Boone RH, et al. Transcatheter aortic valve implantation: impact on clinical and valve-related outcomes. Circulation. 2009;119(23):3009-3016.

17. Thomas JL, Dickstein RA, Parker FB Jr, et al. Prognostic significance of the development of left bundle conduction defects following aortic valve replacement. J Thorac Cardiovasc Surg. 1982;84(3):382-386.
18. El-Khally Z, Thibault B, Staniloae C, et al. Prognostic significance of newly acquired bundle branch block after aortic valve replacement. Am J Cardiol. 2004;94(8):1008-1011.
19. Bader H, Garrigue S, Lafitte S, et al. Intra-left ventricular electromechanical asynchrony. A new independent predictor of severe cardiac events in heart failure patients. J Am Coll Cardiol. 2004;43(2):248-256.
20. Dhar R, Alsheikh-Ali AA, Estes NA 3rd, et al. Association of prolonged QRS duration with ventricular tachyarrhythmias and sudden cardiac death in the Multicenter Automatic Defibrillator Implantation Trial II (MADIT-II). Heart Rhythm. 2008;5(6):807-813.
21. Zahn R, Gerckens U, Grube E, et al. Transcatheter aortic valve implantation: first results from a multi-centre real-world registry. Eur Heart J. 2011;32(2):198-204.
22. Vardas PE, Auricchio A, Blanc JJ, et al. Guidelines for cardiac pacing and cardiac resynchronization therapy: the task force for cardiac pacing and cardiac resynchronization therapy of the European Society of Cardiology. Developed in collaboration with the European Heart Rhythm Association. Eur Heart J. 2007;28(18):2256-2295.
23. Moss AJ, Hall WJ, Cannom DS, et al. Cardiac-resynchronization therapy for the prevention of heart-failure events. N Engl J Med. 2009;361(14):1329-1338.
24. Tang AS, Wells GA, Talajic M, et al. Cardiac-resynchronization therapy for mild-to-moderate heart failure. N Engl J Med. 2010;363(25):2385-2395.
